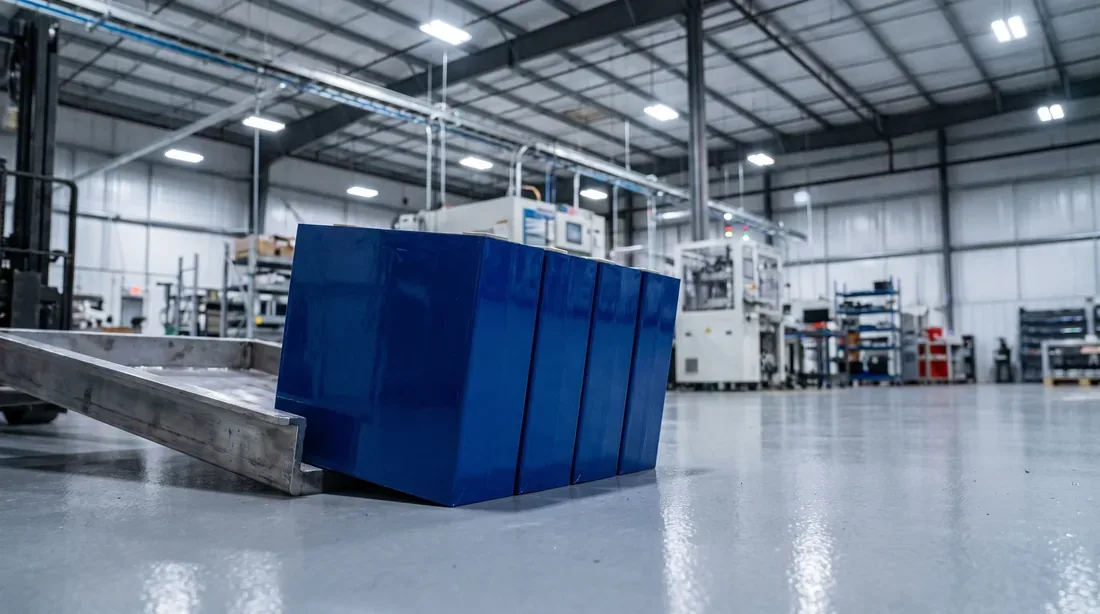

Prismatic cell module of the kind the stacking and pressing station closes and bands

BLP-SP — stations 08 and 09, servo press

The BLP-SP Module Stacking And Pressing Station

A row of prismatic cells goes in; a module with a dimension comes out. The press closes the stack between 0 and 8000 N, writes the whole press as a force curve at 1 kHz, measures the module after release and bands it with steel. Every module leaves carrying its curve, its length and its recipe number.

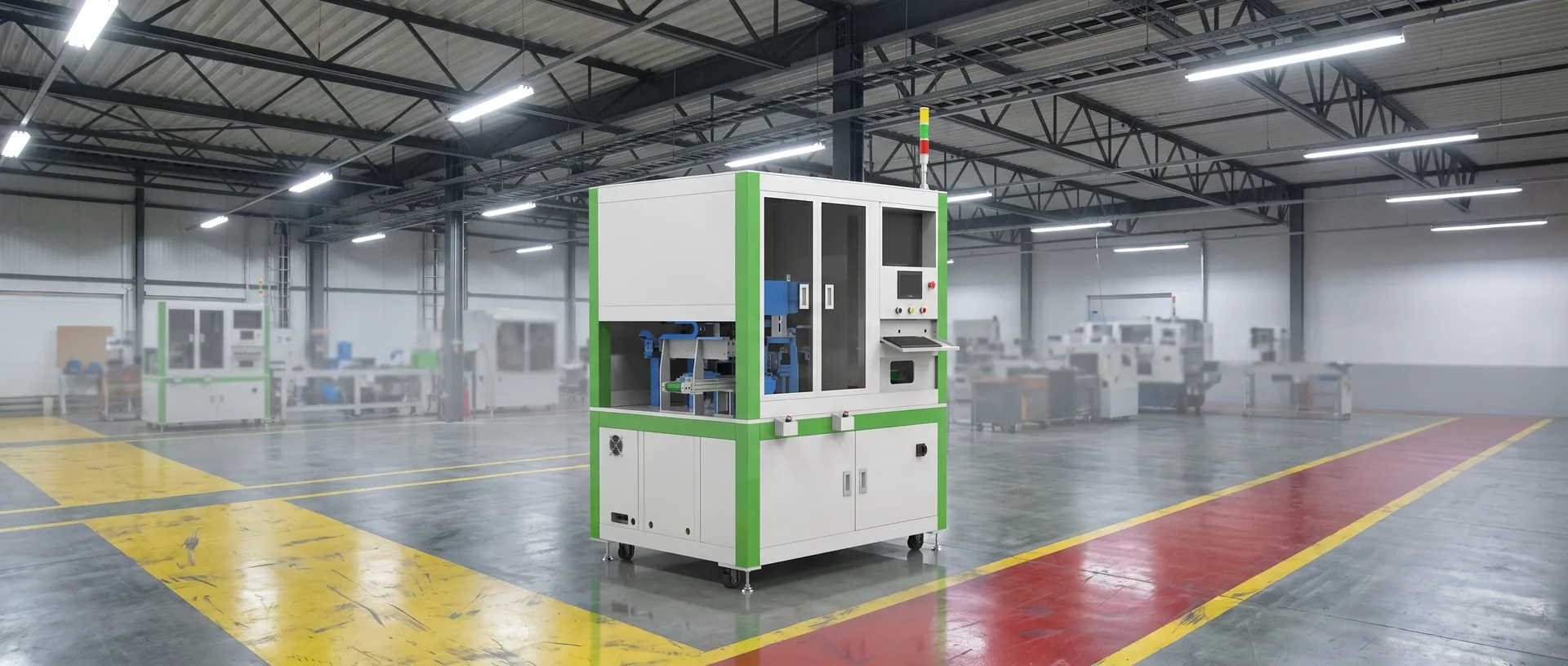

BLP-SP module stacking and pressing station with its servo platens and banding position
Servo platensSteel banding≤90 s per modulePROFINET to MES
  • Approach
  • Loading ramp
  • Knee
  • Dwell 0–60 s
  • Release
  • 0–8000 NServo force, resolved in 10 N steps
  • ≤90 sOne module, banding counted in
  • ±0.5 mmModule length after release

Stations 08 and 09

The Module Stacking And Pressing Station

Seventeen stations make up the module segment. Two of them are this one: stacking, then pressing, shaping and steel banding.

The stack arriving holds 8 to 24 prismatic cells, end plates and insulation sheets placed by the station ahead. The press takes it as final: closes it to a stored target force, holds it for the recipe dwell, measures the module, bands it, and hands it on for polarity and insulation testing.

The blueprint module

The module quoted against is a 1P13S at 978.4 × 178.9 × 205 mm, 100 kg or less, at 90 seconds or less per cycle with banding counted in. Others run on the same station inside the published span, on their own tooling and recipe.

Arrives asA located stack with end plates and insulation sheets in place
Leaves asA banded module with a curve, a measured length and a recipe number
Sits insideThe module assembly line, or a line you own
Quoted asA station with its own supply, air and transfer height
Set of prismatic cells of the kind stacked into one module before pressing

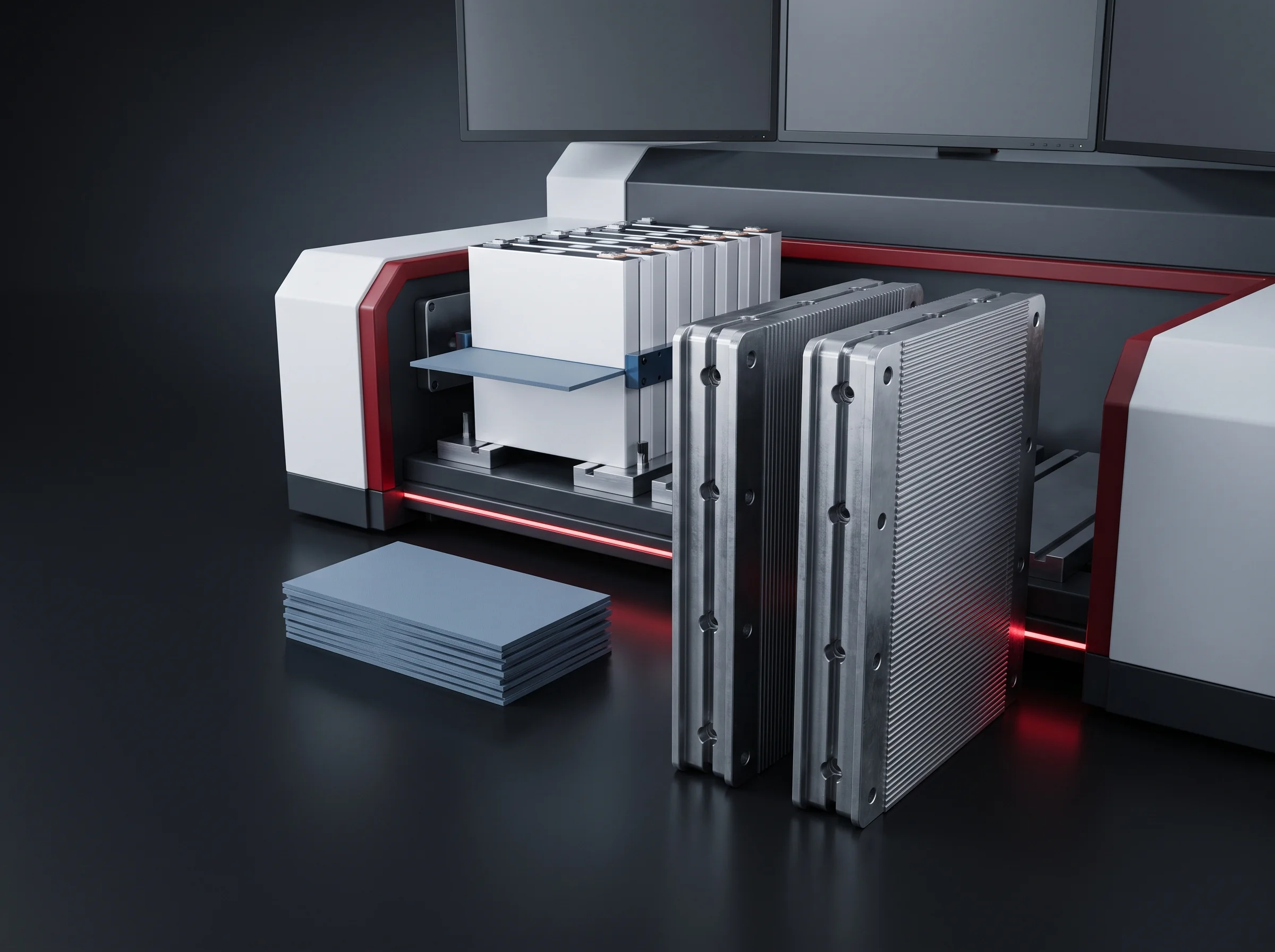

End plates and insulation sheets placed on a stack by the station upstream

Who reads this page

Specifying a whole segment
17 stations
Replacing one press
1 station
Moving to a new module
Tooling + recipe
Reply on a drawing
Within 24 h

Process and equipment engineers in module and pack plants. Send a module drawing and a recipe outline with a tooling list comes back inside a working day.

Three items, per module A force curve, a post-press length and a recipe number. Everything downstream works from those three.

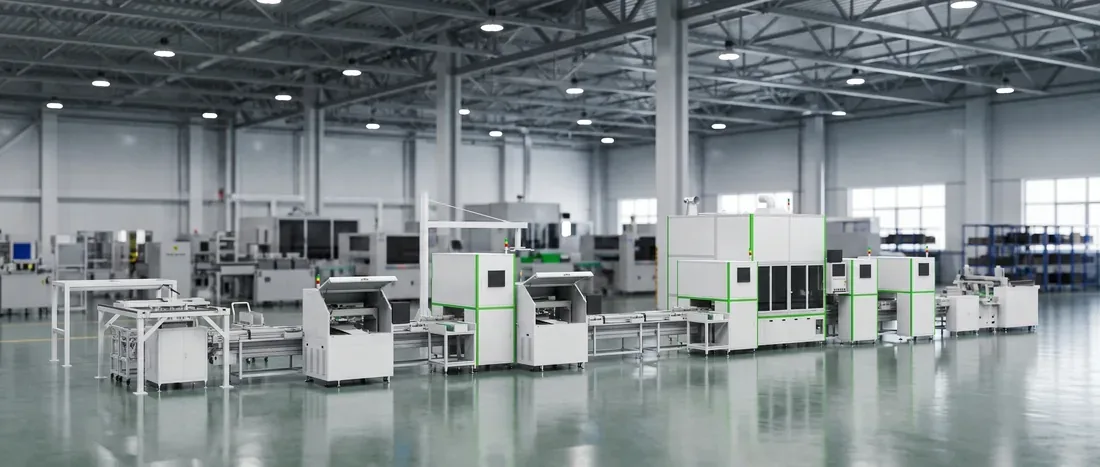

Module segment of the assembly line the pressing station occupies two positions in

One cycle

One Module, Cycle By Cycle

Five things happen between the handover in and the handover out; the recipe governs four of them.

Row of prismatic cells handed over as a located stack
01

Receive

A located stack of 8 to 24 cells arrives on its fixture, end plates and sheets in place.
Taken as final
Servo platens and the locating fixture closing on a cell stack
02

Close

Platens close and the servo drives force in along the recipe, reading a load cell rather than a cylinder pressure.
0–8000 N
Press held closed on a module during the dwell the recipe specifies
03

Hold

Target force is held for the dwell in the recipe. Force, platen position and time are sampled at 1 kHz throughout.
0–60 s dwell
On-machine length measurement across a module after the press releases
04

Measure

Measured under load, then again after release. The released length is the one judged.
±0.1 mm resolved
Steel band drawn around a pressed module at the banding position
05

Band

Steel bands go on to the number of passes the recipe stores. The bands hold the dimension the press just created.
Then handed on

Without the bands the stack relaxes and the module reaching the welder is a different length from the one measured — which is why banding sits inside this station.

Five figures the station is quoted on, before any is set against your own module.

  • 0–8000 NServo pressing force
  • 10 NForce resolution
  • 1 kHzCurve sampling
  • ±0.5 mmPost-press length
  • ≤90 sCycle, banding in

Every figure, one table

The BLP-SP Datasheet

Rows marked at order are fixed when the station is built. The rest are recipe values, ranges or delivered dimensions — interface figures included.

BLP-SP module stacking and pressing station datasheet
ItemFigureStatus
Pressing force0–8000 N, servo controlled, monitored live by pressure sensorAt order
Force resolution10 NAt order
Force curveRecorded through the whole press, sampled at 1 kHzAt order
Dwell time0–60 s, set by recipeRecipe
Pressing span300–1100 mmAt order
Cells per module8–24, blueprint module 1P13SPer module
Post-press length measurement±0.1 mmAt order
Post-press module length tolerance±0.5 mmDelivered
Cycle time90 s or less per module, 1P13S with banding counted inPer module
RecipesStored by module type: target force, dwell, target length, banding passesRecipe
Transfer height900 ± 50 mm, adjustable, set against your existing lineAdjustable
Module handoverModule travels on its fixture, handed over by BLP-CV conveyorInterface
CommunicationPROFINET. Force curve and post-press length uploaded to MES by module numberAt order
Rated power8 kWAt order
Supply380 V / 50 HzPlant side
Compressed air0.5–0.7 MPa, 200 L/min or lessPlant side

Seven rows built in

Force range, 10 N resolution, the 1 kHz curve, the span, the ±0.1 mm measurement, the PROFINET link and the 8 kW rating. A wider span is a different frame, not a setting.

BLP-SP station built to its published pressing span and force range

Two rows carry the rest of this page: the 1 kHz curve, and the ±0.5 mm.

Module drawing checked against the pressing span before a recipe is written

The record of one press

The Force Curve Of One Press

A press is an event with a duration, and one number describes neither part of it. The same peak reached fast and reached slowly leaves two different modules; a peak that holds through the dwell and one that decays through it leaves two more. So the station records the press rather than reporting it.

8000 N 6000 4000 2000 0 DWELL 0–60 S KNEE APPROACH LOADING RAMP HELD RELEASE Time → one cycle, 90 s or less 1 kHz sampling · about 90,000 points per module
Force, read by load cell Platen position Sampling cursor across the dwell

The slope

How quickly the stack took the load. A stack that takes 6000 N in a second and one that takes it over eight are not the same module, whatever the peaks say.

The knee

Where the stack stopped compressing and started resisting. It moves when a cell batch changes — and it moves on the curve before it moves on any module the line would reject.

The dwell

Whether force held or decayed while it was held. A peak reading cannot see this at all, and it decides what the bands are given to hold.

Three quantities, one record

Force, platen position and time are sampled together at 1 kHz through the approach, the loading ramp and the whole dwell — roughly ninety thousand points across a ninety-second cycle. Force itself is read by load cell and the drive closes on that reading rather than on an inferred cylinder pressure.

What a curve outside its shape triggers

  • The module is held at the station under its module number, not released and found later.
  • It goes to the process engineer with its curve attached, rather than to a scrap note.
  • Everything downstream assumes the stack has stopped moving — so a doubtful press is worth stopping here and nowhere else.
  • The dwell on the record is the actual one, not the requested one: a hold cut short to make a takt shows on the curve.

Range, resolution, dwell

Force Range, Resolution And Dwell

Both ends of the range earn their place, and the step between them is why a target is met rather than approached.

  • 8000 NA ceiling, not a setpoint — your target comes off your module drawing
  • 0 NLets the same press close on a low-force stack without running at the edge of its resolution
  • 10 NFiner than any target a module stack is specified to, by a margin that keeps resolution out of the result

Where your target sits is read off your drawing, written into a recipe and qualified on a first article.

Dwell is a module value

Dwell runs from 0 to 60 seconds, chosen for the module type rather than for the shift. The recorded dwell is the actual one, which is what makes a shortened hold visible afterwards.

Set by recipe

Target force, dwell, target length and banding passes travel as one stored recipe per module type.

Read by load cell

Force is read continuously and the drive closes on that reading, not on a cylinder pressure.

Recorded as run

Approach, ramp and dwell sit in one 1 kHz record, so the actual hold is on the curve.
Module stacking and pressing station closed on a stack at its stored target force
Large-format prismatic cells whose stack takes the load during the ramp

The number that leaves

The Length After The Press

Two length figures are published and they answer different questions. Reading one as the other is how a specification becomes an argument three months later.

±0.1 mmWhat the on-machine measurement resolves — the instrument.
±0.5 mmWhat the finished module is delivered to — the commitment.

Measured under load, the module is as short as it will ever be. Measured again after release, with the bands on, it settles to the length the enclosure was drawn for — and that settled number is the one judged.

Outside tolerance, it stays here

One that falls outside ±0.5 mm is held at the station rather than sent on, because every station after this one treats the length as already true.

Post-press length measured across a banded module on the machine

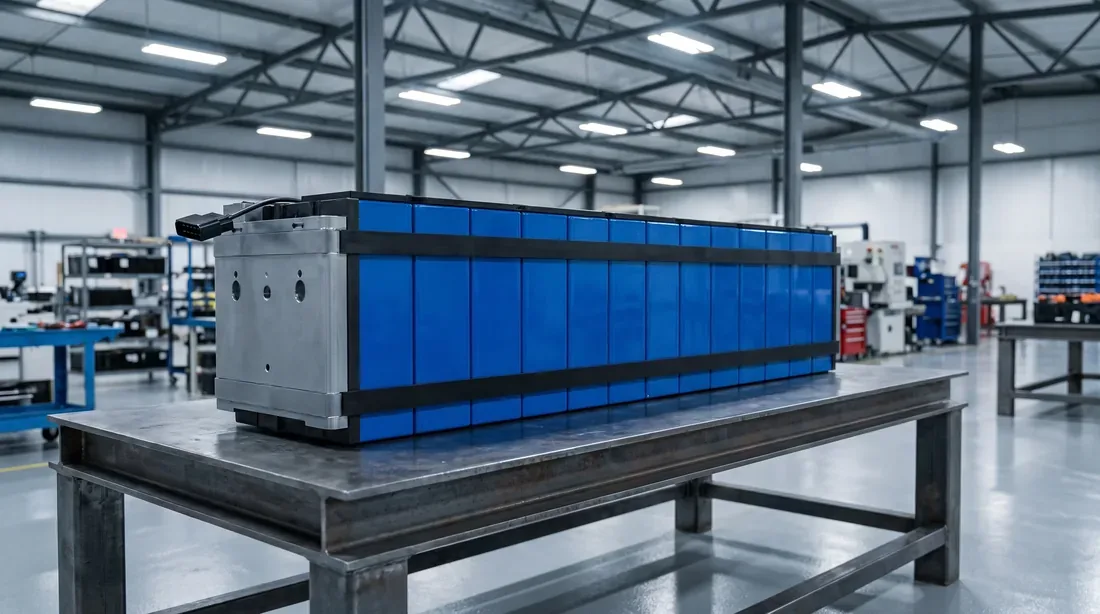

Banded module at the length the pack enclosure was drawn for

What the next stations inherit

  • Terminal addressing locates to ±0.2 mm on a module whose length is known.
  • The busbar welding station welds a located part rather than a placed one, because the CCS assembly sat on a module of the expected length.
  • Pack assembly bolts the module into an enclosure drawn for that dimension, fixing points where the drawing said.
  • None of them re-measures it — which is why it is judged here.
Your own modules, measured The tolerance is something you have seen on your own part before the line ships, not a figure you take on trust.

Send The Module, Get The Recipe Back

Module drawing, cells per module, and the post-press length and tolerance you work to. Back comes the target force and dwell we would store, the tooling your module needs, and whether your module types share one set of it — within 24 hours.

Target force and dwell Tooling list Transfer height check MES interface

Four items per module

Four Records Per Module Number

All four go out over PROFINET to your MES, indexed by module number, the moment the module leaves the station.

Station cabinet through which the press record is pushed to the plant system

The force curve

Force, platen position and time at 1 kHz, first contact to release.
About 90,000 points
Measured post-press length recorded against a module number

The measured length

Taken on the machine after release, judged against the recipe tolerance.
±0.5 mm judged
Station control side where the recipe for a module type is selected

The recipe number

Which stored recipe it was built to, by name rather than by typed-in values.
One per module type
Steel banding passes counted and recorded for one module

The banding passes

How many passes went on, so what holds the dimension is recorded too.
Per recipe

Records, not screens

A live pressure display tells the operator what is happening now. A stored curve tells your process engineer, six weeks from now, what happened to the module that came back from the field.

  • Written per module rather than sampled per shift, so any module sits beside the hundred built either side of it.
  • A press that drifts shows up as a shape moving across those records, long before it shows up as a module that fails.
Module line whose stations index every record by module number

Indexed by module number, over PROFINET.

Before the line ships

Acceptance On Your Own Modules

A batch of your modules is pressed and the spread of released lengths across that batch is handed over — not one good module, the distribution.

−0.5 mmTarget length+0.5 mm

Three things fixed before the test

  • Criteria firstPass criteria for force, dwell shape and released length, signed before any module is pressed.
  • Your modulesYour own cells and end plates, on the tooling that ships with the station.
  • Curves openedRecords are read together, module by module, rather than summarised in a report.
Cells brought in for an acceptance batch on the module stacking station

The station arrives with your module types already loaded as recipes, pressed and signed during acceptance.

Four values, three accounts

Recipes And The Three Accounts

A plant running three module types runs three recipes, selected by name rather than typed in at the start of a shift. Editing one is a different act from selecting one — and the station enforces that.

Station control panel with three account levels for selecting, editing and signing recipes
Operator account

Selects and releases

Picks the recipe by name, releases good modules, and knows what to do with a held one.
Cannot edit a stored value
Module drawing from which target force, dwell and target length are written
Process account

Writes and edits

Owns the four values, reads curve shape, qualifies a first article before volume.
Every edit kept with item, account and time
First article module cells inspected before a recipe change goes live
Quality account

Signs it live

A change goes live only once signed — the same route the welding stations use.
One signing rule, pressing and welding

The four values a recipe holds

Target forceOff your module drawing, inside 0–8000 N
Dwell0–60 s, held and recorded as run
Target lengthWith the ±0.5 mm it is judged to
Banding passesHow many passes hold the dimension

Traceable to the edit

Every change is kept with the item, the account and the time. A shift in module length three weeks after an edit is walked back to that edit rather than argued about.

  • Operators are trained on selection, on the release, and on what to do with a held module.
  • Process engineers on writing a recipe, reading curve shape, and qualifying a first article.
  • Training is split the same way the accounts are, so the split survives the handover.

Semi-automatic, stated

Stacking, Pressing And Banding

Three things happen across stations 08 and 09, automated to different degrees. The pair is specified as semi-automatic because one of them needs a pair of hands every cycle.

Cells brought together into a stack at the automatic stacking position
Automatic

Stacking

Cells are brought together and located with no operator in the cycle.
No labour budgeted
Servo press closing on a stack under recipe control
Automatic, servo driven

Pressing

Force, dwell and the record run off the stored recipe, with no operator judgement inside the press.
No labour budgeted
Steel band applied by hand at a machine-paced banding position
Manual, machine-paced

Steel banding

Hands at a machine-paced position, every cycle. Band consistency decides whether the pressed dimension survives.
Budget labour here

Why it is published this way

Called fully automatic, you budget no labour for a position needing hands every cycle, and the shortfall turns up on your floor.

Called manual, you train for machine work the operator never touches, while band consistency — the skill that matters here — gets none.

  • Upstream of the pressEnd plates and insulation sheets come from the station ahead; the press works on the stack as it arrives.
  • Downstream of the bandsPolarity and insulation testing runs on a banded module. Here the press creates the dimension; the bands preserve it.

What fits, and what changes

Pressing Span And Module Length

Read a module against the span and you learn about this station; read it against the envelope and you learn about the line.

  • 300–1100 mm — pressing span, this stationThis press
  • 400–1200 mm long × 100–300 wide × 100–250 high — module envelopeThe line
  • 978.4 × 178.9 × 205 mm, 1P13S blueprint moduleClears both
  • 900 ± 50 mm transfer height, adjustable to your lineSet on site

Your module types are checked against both ranges at drawing stage, and you get a written finding: which run on one set of tooling, and which need their own.

Module measured along the axis the platens close on
Pack enclosure drawn around modules of a known post-press length

A new module length is hardware plus one recipe

Press platens, the locating fixture and the banding stops are tooling cut for a module family. The recipe is written for the new type and qualified on a first article before it runs in volume.

Press platensCut for the module family, changed as a set
Locating fixtureHolds the stack square to the platens
Banding stopsPut the bands where the drawing wants them

Tooling is quoted per item, and the changeover picture across every station is on the cell compatibility and changeover page.

Press platens and locating fixture cut for one module family

One station, on its own

A Stand-Alone Module Stacking Station

The interface figures exist so the press drops into a line we built, or a line somebody else built.

  • 8 kWRated power
  • 380 V / 50 HzSupply
  • 0.5–0.7 MPaAir, ≤200 L/min
  • 900 ± 50 mmTransfer height, adjustable

How a module gets in and out

Modules travel on their fixtures, handed over by BLP-CV conveyor at 200 kg or more and up to 20 m/min. Transfer height is set against the line you run, not fixed at our number.

How the record gets out

Control-side the station speaks PROFINET and pushes the force curve and post-press length to your MES by module number — into the system you already run.

Module conveyor handing a fixture to the module stacking station at transfer height

What the station needs from the line either side of it

Coming in

A stack with end plates and insulation sheets in place, on a fixture the conveyor can hand over.

Going out

A downstream position ready for a banded module, and a control system that accepts the record over PROFINET.

Whichever line it joins Installation, commissioning, acceptance testing and training are part of the supply — bought alone exactly as bought inside a segment.
Existing module line the press is fitted into at its own transfer height

Three situations

Three Buyers Of The Module Stacking Station

Quoted the same way in all three. What differs is how much of the line around it is being decided at the same time.

Complete module segment being specified station by station
01

Specifying a whole segment

The press is stations 08 and 09 of seventeen; the questions are takt, tooling and how many module types share one set.
Quoted inside the segment
Servo press with a record replacing a fixed-stop press in an existing line
02

Replacing the press in a running line

A servo press with a record replaces a fixed-stop press. Transfer height and the control system decide the fit.
Quoted as one station
Line moving onto a new module type that needs its own tooling and recipe
03

Moving a line onto a new module

One of the positions needing new tooling and a new recipe, qualified on a first article before volume.
Quoted as tooling plus recipe

The engineering group behind all three

26 engineers across mechanical, electrical and control, laser and vision process, and field installation, working out of a 6,000 m² assembly hall with three pre-assembly bays where a line is powered up before it ships.

Wear parts ship within 48 hours, remote diagnostics is available on the station, and the group holds ISO 9001, CE and RoHS. How projects run is on the about page.

  • 26Engineers
  • 6,000 m²Assembly hall
  • 40+Line segments
  • 12Countries

What a quote needs

Five Items For A Quote

Five items, and two more if the station joins a line you already run.

  1. The module drawingLength, width, height and end plate form.
  2. Cells per moduleAnywhere from 8 to 24, and the cell format they are.
  3. Length and toleranceThe post-press length you work to, and how tight.
  4. Target force and dwellIf you have them. If not, the drawing is enough.
  5. Takt and bandingYour takt, and whether banding is in scope here.

Joining an existing line, add two

  • The transfer height you run at, so the 900 ± 50 mm is set against it.
  • The control system it reports to, so curve and length land in the MES you already use.

To see it running first, send cell drawings, module and pack configuration and target takt two weeks ahead of a visit — the pre-assembly bay is set to your configuration when you arrive. Start on the contact page.

Prismatic cells of the format a module stacking quote is built around

Back within 24 hours

  • The target force and dwell we would store as your recipe.
  • The tooling your module types need, and which share one set.
  • How the station fits your handover height.
  • How the record reaches your MES.
Module drawing read for target force, dwell and tooling before a quote goes out
Pressing station configured to the module type it was quoted for

How to reach you

[email protected]

Start a project

Send Your Module Drawing

Three required lines to our engineering team and the recipe we would store, the tooling your modules need and how the station meets your handover height come back within 24 hours. Behind it: 26 engineers and 40+ line segments delivered into 12 countries, on the about page.

Phone / WhatsApp
Address
Wuhan, Hubei, China
Response
Within 24 hours
